Motherboard HUANANZHI X99-T8 hàng mới

Model

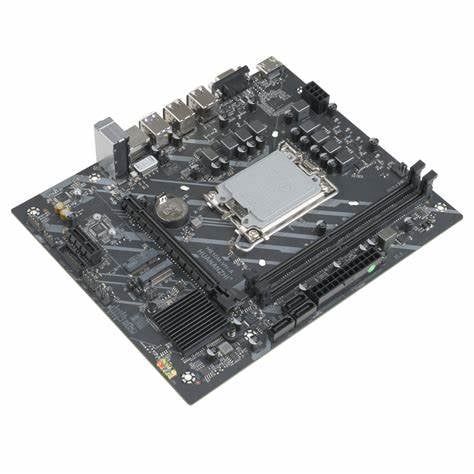

HUANANZHI H610M-VH-A Motherboard

Chipset

Intel H610

CPU Socket

Support Intel LGA1700 Processors

Memory Slot

2 x DDR4 Memory Slot

Memory Standard

Support dual channels  DDR4 3200/2933/2666/2400MHz，Max Support 64GB

Storage Interface

3xSATA3.0 6Gbps

Expansion Slots

1xPCIe3.0x16，1xPCIe3.0x1

Expansion Interface

1xM.2 2280 NVME PCIE X4 3.0 32Gbps@M.2 2280 NGFF SATA3.0 6Gbps，1xM.2 WIFI

Sound Track

Realtek High Definition Audio ALC897

Network Card

Realtek Gigabit Network Card RTL8111H

Power Interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN，1xSYS_FAN PIN

Power Supply

8Phase Power Supply

PCB Layers

4-layer PCB

Dimension

220*180MM M-ATX

Rear Panel Interface

4xUSB2.0 480Mbps，2xUSB3.2 10Gbps，1xNetwork Card Interface，1x3-Hole Audio Interface，1xVGA Interface，1xHDMI2.0 Interface

Front Panel Interface

1xUSB2.0 480Mbps PIN，1xUSB3.2 5Gbps PIN，1xFront Audio PIN，1xCOM PIN，1xPower On/Restart PIN，1xDebug PIN

Support System

Windows10 Windows11

BIOS

AMI UEFI BIOS

Packing List

1xMotherboard，1xSATA Cable
