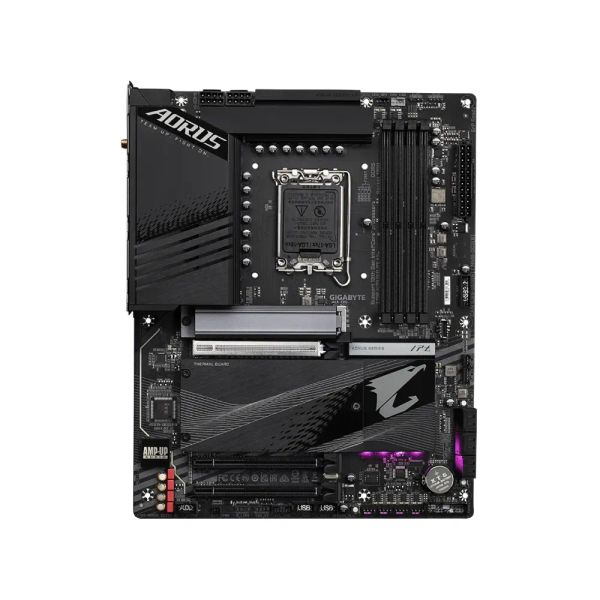

Main Gigabyte Z790 Aorus Elite X AX DDR5 (Hỗ trợ CPU Intel 14th/13th/12th)

Chipset

• Hỗ trợ DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory
• 4 x DDR5 DIMM sockets tối đa 192 GB (1 cây RAM 48 GB) of system memory

Dual channel memory architecture

• 1 x HDMI port, hỗ trợ độ phân giải tối đa 4096×2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

• 1 x DisplayPort, hỗ trợ độ phân giải tối đa 4096×2304@60

* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)

• Realtek® Audio CODEC
• High Definition Audio 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

• Intel® Wi-Fi 6E AX211
  WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  * Actual data rate may vary depending on environment and equipment.

Kết nối bên trong

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 4 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x reset button
• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Kết nối phía sau

• 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI 2.0 port
• 1 x DisplayPort
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

Điều khiển I/O

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Bios

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất

• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup0.5cm x 24.4cm

Gói phần mềm

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor
